EOD X-RAY GENERATORS AND SECURITY SYSTEMS BOOST SAFETY
29 September 2021
Portable EOD X-ray generators and security systems are widespread. The ability to see what is inside a suspect package is invaluable. Bomb squads, military, police, security and special forces rely on them to make quick decisions on any possible threat. They are key to neutralising dangerous objects and exposing hoax threats.

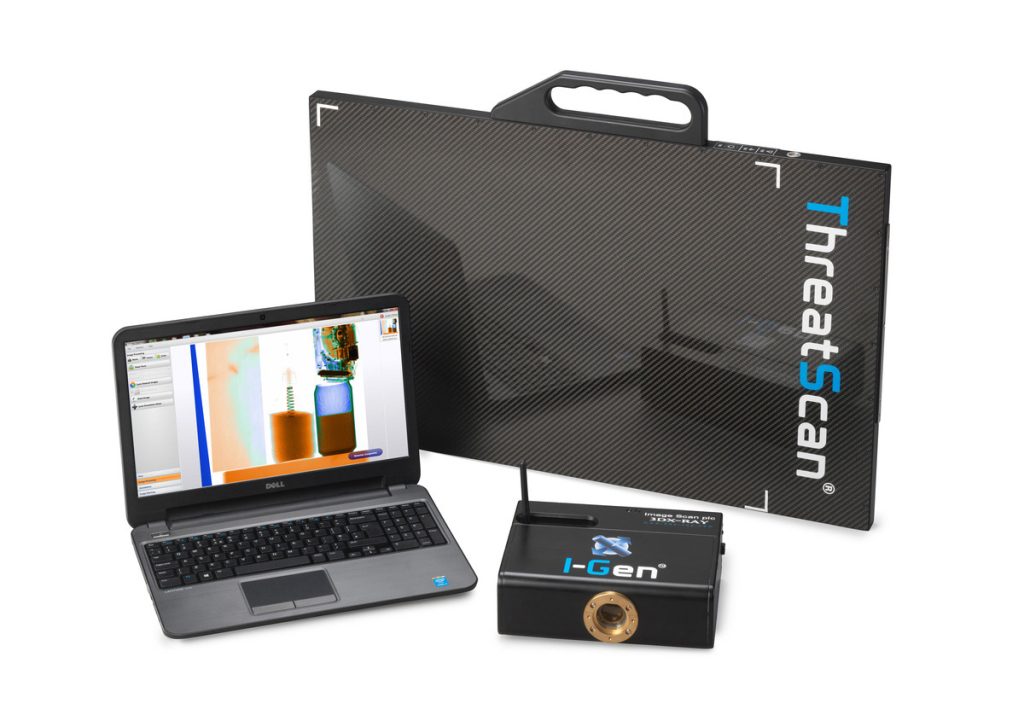

Our I-Gen IED / EOD X-ray generators are part of our Threatscan® LS1, LS2 and LSC portable X-ray security systems. They offer detailed threat detection for packages that may containing bombs; powders; bio-hazards; chemicals; needles; razor blades or incendiary devices.
Our versatile I-GEN is robust and user-friendly. It is ready for use within a seconds of arrival at a scene. Being small and battery-powered makes it perfect for rapid on-site deployment. It is also easy to deploy, even when space is tight.

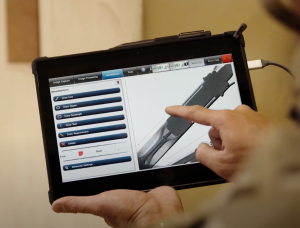

The I-Gen enables our Threatscan® system detectors to produce high quality real-time x-ray images. This supports rapid, accurate decision making. Scanning is activated from a remote laptop imaging station and can penetrate up to 34mm of solid steel.
The system offers speed, accuracy and materials differentiation. This gives security professionals the information they need allowing them to make quick, accurate decisions. It also helps clear hoax threats and reduce the number of uncertain or false positive identifications. The time needed to return an area to normal use after an incident is greatly reduced.
3DX-ray’s introduction of advanced security x-ray generators, screens and software helps minimise the chaos caused by security threats and hoaxes. It increases the safety of the both the security specialists and the public at large.
I-Gen Technical Specifications
Communications
Type Constant potential, oil insulated
Maximum kV 120kV (adjustable 40-120kV)
Maximum mA 1mA – 2mA (2mA @ 60kV)
Dimensions (L x W x H) 245mm x 180mm x 80mm
Weight (without battery) 5.5kg
Pre-warning time Adjustable
Focal spot size 0.5mm x 0.5mm (mini-focal)
Window Glass
Beam angle 50’ x 50’
Tube life >10 years of daily use
Maximum capacity (1 battery) 20 minutes continuous
Two (2) batteries (inc 1 spare) 24V, lithium ion, 2500 mAH
Charger time Two (2) hours
Duty cycle 100% (operated via mains power)
Bump test Designed to IEC 60068-2-29:Test Eb
Operating temperature -30oC to +55oC
Storage temperature -40oC to +80oC
Humidity 0% to 95% non-condensing
Ingress protection (water, dust) Designed to IP55
Penetration 30mm guaranteed, 34mm typical
Wireless (as standard) 802.11a/g/n, up to 25m range (extendable with repeaters)
RS232 (option) 25m, 50m
Safety
Physical safety interlock key switch
Audible & visible warning signs CE compliant
Being oil-filled our I-Gen EOD X-ray generators do not use any ozone-depleting Class 9 gases. This simplifies all types of international transportation as no dangerous goods documentation is required. It is suitable for both security and NDT applications
